Venturi Flow Meter Calculator

Compute flowrate, throat diameter, or differential pressure

Register to enable "Calculate" button.

 Volumetric Flow, Qv (m3/s): Solve for: Mass Flow, Qm (kg/s): Flowrate Differential Pressure (Qv known) Differential Pressure (Qm known) Throat Diameter (Qv known) Throat Diameter (Qm known) Diff Pressure, Δp (N/m2, Pa): Throat Diameter, d (m): Select Meter Type and Liquid: Pipe Diameter, D (m): Water at 70 F, 20 C Water at 40 F, 5 C Seawater at 60 F, 16 C SAE 30 oil at 60 F, 16 C User Defined Liquid or Gas Ratio, d/D: Cast Iron convergent section Machined convergent section Welded Sheet Metal convergent Density, ρ (kg/m3): Kinematic Viscosity, ν (m2/s): Select Units for each Variable: Discharge Coefficient, C: Qv in ft3/s or cfs Qv in gal/min or gpm (U.S. gal) Qv in m3/s Reynolds No. based on d, Red: Qm in slug/s Qm in lb (mass)/s Qm in kg/s Reynolds No. based on D, ReD: Pressure in psi Pressure in inch H2O (60F) Pressure in inch Mercury (60F) Pressure in millibars Pressure in N/m2 or Pa Pressure in mm Mercury (0C) Throat Velocity, Vthroat (m/s): Diameters in inches Diameters in feet Diameters in cm Diameters in meters Pipe Velocity, Vpipe (m/s): Density in slug/ft3 Density in lb (mass)/ft3 Density in kg/m3 Density in g/cm3 Throat Area, Athroat (m2): Visc in ft2/s; Vel in ft/s; Area in ft2 Visc in m2/s; Vel in m/s; Area in m2 Pipe Area, Apipe (m2): ©2014 LMNO Engineering, Research, and Software, Ltd. http://www.LMNOeng.com

Units: cm=centimeter, ft=foot, g=gram, gal=U.S. gallon, kg=kilogram, km=kilometer, lb=pound, m=meter, min=minute, N=Newton, Pa=Pascal, psi=lb/inch2, s=second

Diagram of Venturi Flow Meter

Introduction to Venturi Flow Meters
The classical Venturi tube (also known as the Herschel Venturi tube) is used to determine flowrate through a pipe. Differential pressure is the pressure difference between the pressure measured at D and at d. Other devices typically used to determine flowrate are orifices and nozzles, but the venturi tube has less head loss than either of these other methods due to its streamlined design. For exact geometry and specifications for venturi tubes, see ISO (1991) or ASME (1971). Venturis with cast iron entrance cones (the converging portion) are typically used in 4 to 32 inch (10 to 80 cm) diameter pipes. Venturis with machined convergences are typically used in pipes having diameter less than 10 inches (25 cm) while venturis with a welded sheet metal convergence are used for larger pipes, typically up to 48 inch (1.2 m) diameter (ASME, 1971). The ASME (American Society of Mechanical Engineers) and ISO (International Organization of Standards) have been working on guidelines for Venturi tubes since the early 1900s. The organizations have the most confidence in Venturi tube accuracy when the Reynolds number is in the range of 105 to 106 as discussed below.

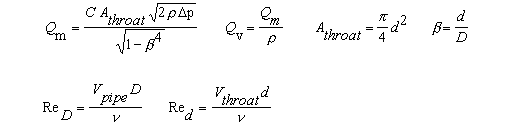

Equations                                                         Top of Page
The calculations on this page are for a Classical Venturi Tube carrying a liquid as described in ISO (1991) and in ASME (1971). The ISO reference has a more complete discussion of venturi tubes than the ASME reference, so the ISO equations are used in our calculations.

Discharge Coefficients for Venturi                                         Top of Page
The following graph shows how C varies with Re:

The graph is formed from the following data provided in ISO (1991)*:

 Cast Iron Convergent (also known as "As Cast" or "Rough Cast") ReD 4x104 6x104 1x105 1.5x105 2x105 to 1x106 C 0.957 0.966 0.976 0.982 0.995 [1] Machined Convergent Red 5x104 1x105 2x105 3x105 5x105 2x105 to 1x106 [2] C 0.970 0.977 0.992 0.998 0.995 0.995 Welded Sheet Metal (or Welded Sheet Iron) Convergent ReD 4x104 6x104 1x105 2x105 to 2x106 C 0.96 0.97 0.98 0.985 [3]

Notes in above table:
* ISO 5167-1 states that only the last column of C values is part of the standard; the other values presented are from a smaller number of experiments and, in most cases, the venturi tubes had geometries which were not strictly in accordance with the ISO standard. No limits on D or d/D are indicated for any C's except for the last column.
[1]: Valid for 5 cm ≤ D ≤ 25 cm and 0.4 ≤ d/D ≤ 0.75
[2]: ReD (not Red)=2x105 to 1x106 and 5 cm ≤ D ≤ 25 cm and 0.4 ≤ d/D ≤ 0.75
[3]: Valid for 20 cm ≤ D ≤ 1.2 m and 0.4 ≤ d/D ≤ 0.7

LMNO Engineering fit curves through the data points to arrive at the above graph. The fitted curves are used in the calculations and have the form:
C = a + b log(Re) + c  [log (Re)]2 + d [log(Re)]3 + ...
where a, b, c, d, ... are constants. The number of constants was set equal to the number of data points plus 1.

Error Messages                Top of Page
"All inputs must be positive". This is an initial check of user input. No computations.

"d/D must be < 1". This is an input check if both d and D are entered. No computations.

"D or d/D out of range", "D out of range", or "d/D out of range". Results are computed and printed, but D or d/D are out of the valid range where tests were conducted to determine C values. Computations are completed since C does not depend directly on D or d/D; C is only a function of Red or ReD.

"ReD out of range", "ReD will be too high", "ReD will be too low", "Red and ReD out of range", or "Red , ReD will be out of range". C is not computed and neither is the desired quantity. However, some quantities are computed if they don't require C (e.g. pipe area from D). Accurate values for C have been determined by ISO and ASME only within the published ranges of Red or ReD, depending on the type of venturi. Red is Reynolds number based on d (throat diameter) and ReD is Reynolds number based on D (pipe diameter).

Try the simpler venturi calculation on our Bernoulli page if your parameters are out of range. It is not as accurate, but won't give "parameter out of range" error messages.

References                                                         Top of Page
International Organization of Standards (ISO 5167-1). 1991. Measurement of fluid flow by means of pressure differential devices, Part 1: Orifice plates, nozzles, and Venturi tubes inserted in circular cross-section conduits running full. Reference number: ISO 5167-1:1991(E).

American Society of Mechanical Engineers (ASME). 1971. Fluid meters: Their theory and application. edited by H. S. Bean. 6ed. Report of ASME Research Committee on Fluid Meters.
