Choked Flow Calculator

Calculate choked flow of compressible gas from a pressurized tank to pipe with temperature changes. Adiabatic (Fanno) Flow

Register to enable "Calculate" button.

 INPUTS: Specific Gravity, S: Make selections: Molecular Weight, Mw: g/mole Air Carbon Dioxide Helium Methane Nitrogen Oxygen User enters S, Viscosity, k User enters Mw, Viscosity, k Dynamic Viscosity, μ: centipoise, cP poise, dyne-s/cm2 N-s/m2, kg/m-s lb-s/ft2, slug/ft-s PVC, Plastic, Glass Steel or Wrought Iron Galvanized Iron Cast Iron Drawn Tubing User enters Roughness Specific Heat Ratio, k: Pipe Inside Diameter, D: inch ft cm m Pipe Length, L: ft mile m km Minor Loss Coefficient, Km: Pipe Roughness, ε: inch ft mm m Tank Temperature, Tt: Fahrenheit, F Rankine, R Celsius, C Kelvin, K Tank Pressure, Pt: psia psig psf (lb/ft2) absolute psf (lb/ft2) gage bar absolute bar gage N/m2 (Pascal) absolute N/m2 (Pascal) gage kilo Pascal (kPa) absolute kilo Pascal (kPa) gage Mega Pascal (MPa) absolute Mega Pascal (MPa) gage Pressure outside pipe, P3: psia OUTPUTS: Mass Flow Rate, W: slug/s lb/s lb/hr lb/day kg/s kg/hr kg/day Flow at Std Conditions, Q: std ft3/s std ft3/min, scfm std ft3/hr, scfh std ft3/day, scfd std Thousand cfh, Mscfh std Million cfd, MMscfd Normal m3/s Normal m3/min Normal m3/hr Normal m3/day Reynolds Number, Re: © 2015 LMNO Engineering, Moody Friction Factor, f: Research, and Software, Ltd. Pipe Area, A: inch2 ft2 cm2 m2 http://www.LMNOeng.com Tank Density, ρt: lb/ft3 slug/ft3 kg/m3 g/cm3 PROPERTIES: Pipe Inlet (Location 1) Pipe Outlet (Location 2) Velocity, V: ft/s m/s Mach Number, M: Temperature, T: Fahrenheit, F Pressure, P: psia Density, ρ: lb/ft3

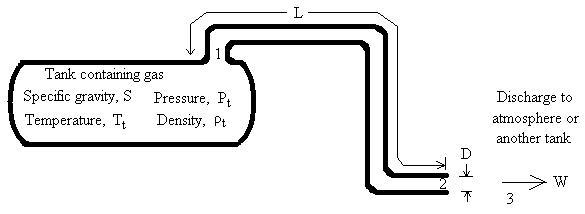

Gas flows from the tank, into the pipe, and discharges:

Choked flow calculator units: atm=atmosphere, cm=centimeter, cP=centiPoise, ft=foot, g=gram, hr=hour, k=kilo (1000), kPa=kiloPascal, kg=kilogram, km=kilometer, lb=pound, m=meter, min=minute, mm=millimeter, M=Mega (million, 106) or Thousand (103) depending on context, MM=Million, MPa=MegaPascal, Mscfh=thousand std cubic foot per hour, MMscfd=million std cubic foot per day, mol=mole, N=Newton, N/m2=Newton per square meter (same as Pascal), Normal=std conditions, Pa=Pascal, s=second, psf=pound per square foot (lb/ft2), psi=pound per square inch, psia=psi (absolute), psig=psi (gage), scfd=standard cubic foot per day, scfh=standard cubic foot per hour, scfm=standard cubic foot per minute.

Standard conditions are 15 oC (i.e. 288.15 K, 59 oF, 518.67 oR) and 1 atm (i.e. 101,325 N/m2, 14.696 psia). If gage pressure units are selected, the calculation assumes atmospheric pressure is 1 atm. The program uses 1 atm to convert between gage and absolute pressures.

Choked Flow Calculator Introduction
Choked flow calculator computes the mass flow rate through a pipe based on tank pressure and temperature, pipe length and diameter, minor losses, discharge pressure, and gas properties. Temperatures, pressures, densities, velocities, and Mach numbers are computed at all transition points (in the tank, at the pipe entrance, in the pipe at the exit, and in the surroundings at the discharge). As the gas flows through the pipe, the pressure drops. Hence, density drops and velocity increases. If choking occurs, it will only occur at the pipe exit (Munson et al., 1998) for flow through a constant diameter pipe.

In the choked flow calculator, gas flowing steadily from a tank into a pipe and discharging to the atmosphere (or another tank) is modeled using Fanno flow. Fanno flow assumes that the pipe is adiabatic. Adiabatic means that there is no heat transfer into or out of the pipe. This is physically accomplished by insulating the pipe. Even if the pipe is not insulated, the adiabatic assumption is probably more realistic than an isothermal assumption for short lengths of pipe. In longer pipelines that are isothermal (constant temperature) and subsonic, the Weymouth calculation may be more suitable for computing flow rates and pressure drops.

Equations
For a gas flowing steadily from a tank to a pipe under Fanno flow conditions (adiabatic), the procedure follows that of Fanno flow in Gerhart et al. (1992) and Munson et al. (1998). An example in Perry (1984) uses figures which represent Fanno flow for choked flow. The following equations are solved simultaneously to compute mass flow rate, temperatures, pressures, velocities, and Mach numbers.

Gas specific gravity and pipe cross-sectional area:

Gas densities using ideal gas law:

The choked flow calculator checks to see if choked flow occurs. If flow is choked, then choking occurs at location 2. Choked flow occurs if P3<P2*.   P2* is the static pressure at location 2 if flow is choked. If choked flow occurs, then the * is dropped from the superscripts at location 2 for simplicity. ΣKm represents losses due to elbows and the pipe entrance. M1 is computed from:

Conditions are stagnant in the tank. Assuming the tank exit behaves isentropically:

Pt = Po,1          Tt = To,1            ρt  = ρo,1        and:

Since choked flow occurs at location 2, M2=1.0 and:

Velocities are:

Since pipe diameter and mass flow rate are constant along the pipe, the Reynolds number is the same at locations 1 and 2:

Moody friction factor is computed from the following equations:

If laminar flow (Re < 4000 and any ε/D), then

If turbulent flow (4000 < Re < 108 and ε/D < 0.05), then Colebrook equation (Munson et al., 1998, p. 494):

If fully turbulent flow (Re > 108 and 0 < ε/D < 0.05), then Streeter et al. (1998, p. 289):

Mass flow rate, density at standard conditions, and flow rate at standard conditions are:

Variables
The units shown for the variables are SI (International System of Units); however, the equations above are valid for any consistent set of units. Our calculation allows a variety of units; all unit conversions are accomplished internally.
A = Pipeline cross-sectional area, m2.
D = Pipe inside diameter, m.
f = Moody friction factor. (Note that Moody friction factor is 4 times the Fanning friction factor. Fanning friction factor is often used by chemical engineers.)
k = Gas specific heat ratio. Specific heat at constant pressure divided by specific heat at constant volume, Cp/Cv. Default values at 15oC or 20oC from Munson et al. (1998). k actually varies with temperature and can range from, using methane as an example, 1.32 at 50oF to 1.28 at 250oF (GPSA, 1998, p. 13-6).
Km = Minor loss coefficient for pipe entrance, bends, etc. Since flow is choked (if the calculation proceeds), do not include an exit loss coefficient.
ln = Natural logarithm (base e, where e=2.71828...).
log = Common logarithm (base 10).
L = Pipe length, m.
M = Mach number.
Mw = Molecular weight of gas, kg/mole.
P = Absolute pressure, N/m2 absolute.
Q = Flow rate at standard conditions, Normal m3/s.
Re = Reynolds number.
Ru = Universal gas constant, 8.3144126 N-m/mol-K (CRC, 1983, p. F-208).
S = Specific gravity of gas, relative to air (Sair=1).
T = Absolute temperature, Kelvin.
V = Velocity, m/s.
W = Mass flow rate, kg/s.
ε = Pipe roughness, m. Default values from Munson et al. (1998).
μ = Gas dynamic viscosity, kg/m-s. The program assumes this is constant even though temperature (thus viscosity) varies along the pipe.
π = 3.14159....
ρ = Gas density, kg/m3.
Σ = Summation.

Subscripts:
t = Tank.
1 = Pipe entrance.
2 = Pipe exit.
3 = Surroundings.
o = Stagnation property.
s = std = Standard (or "Normal") conditions. The word "standard" is used for English units. The term "Normal" is used with SI units, as in Nm3/s which means "Normal m3/s". Standard and Normal conditions for our choked flow calculation are 15 oC (i.e. 288.15 K, 59 oF, 518.67 oR) and 1 atm (i.e. 101,325 N/m2, 14.696 psia) from Perry (1984, p. 3-167). Some industries use different temperature and pressure for standard (or Normal) conditions. To convert the mass flow rate computed by our choked flow calculation to volumetric flow at a different Ts and Ps, use our gas flow conversions page.

If gage pressure units are selected, the calculation assumes atmospheric pressure is Ps. The program uses Ps to convert between gage and absolute pressures.

Minor Loss Coefficients (Km). From Munson et al. (1998).

 Fitting Km Fitting Km Pipe Entrance (Tank to Pipe): Elbows: Square Connection 0.5 Regular 90o, flanged 0.3 Rounded Connection 0.2 Regular 90o, threaded 1.5 Long radius 90o, flanged 0.2 Long radius 90o, threaded 0.7 180o return bends: Long radius 45o, threaded 0.2 Flanged 0.2 Regular 45o, threaded 0.4 Threaded 1.5

Error Messages given by calculation
Input checks:
"Need S > 1e-8", "Need Viscosity > 1e-20 N-s/m2 ",  "Need k > 1.0000001", "Need D > 1e-9 m", "Need Pipe Roughness > 0", "Need Tt > 1e-8 Kelvin", "Need Pt > 1e-8 N/m2 absolute", "Need P3 > 1e-8 N/m2 absolute", "Need Pt > P3". "Need Km+  f L / D ≥ 1e-8". Specific gravity, viscosity, specific heat ratio, pipe diameter, surface roughness, tank temperature, tank pressure, discharge pressure must be acceptable values.
"Need L > 0". Pipe length can be 0.0 since the software can model an orifice without actually having a pipe.

Run-time messages:
"Flow is choked". This message will appear during normal running of the program if flow is choked.
"Flow is subsonic". If the conditions are such (e.g. low Pt, high P3, high L, high Km, low D), then flow will not be choked and the calculation will stop.
"Mach at 1 not found". The program is unable to compute the Mach number at the pipe inlet.
"Re or ε/D out of range". Reynolds number or roughness-to-diameter ratio is out of range.
"Moody f not found". The program is unable to determine the friction factor. Reynolds number or roughness-to-diameter ratio may be out of range.

References
Chemical Rubber Company (CRC). 1983. CRC Handbook of Chemistry and Physics. Weast, Robert C., editor. 63rd edition. CRC Press, Inc. Boca Raton, Florida.

Gerhart, P. M., R. J. Gross, and J. I. Hochstein. 1992. Fundamentals of Fluid Mechanics. Addison-Wesley Pub. Co. 2ed.

Gas Processors Suppliers Association (GPSA). 1998. Engineering Data Book (fps [foot-pound-second] version). Gas Processors Association. 11ed.

Perry, R. H. and D. W. Green, editors. 1984. Perry's Chemical Engineers' Handbook. McGraw-Hill, Inc. 6ed.

Munson, B.R., D. F. Young, and T. H. Okiishi. 1998. Fundamentals of Fluid Mechanics. John Wiley and Sons, Inc. 3ed.

Streeter, V. L., E. B. Wylie, and K. W. Bedford. 1998. Fluid Mechanics. McGraw-Hill. 9ed.
